CGEM II 1100
22,000 ₪
זמינות מוצרים במלאי: מוצר במלאי
זמינות מוצרים במלאי: מוצר במלאי

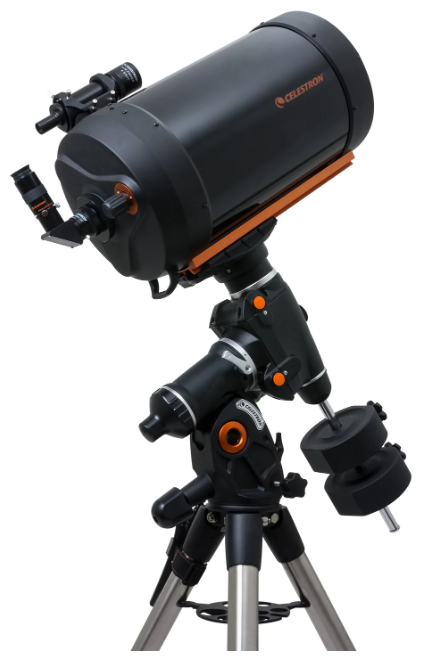

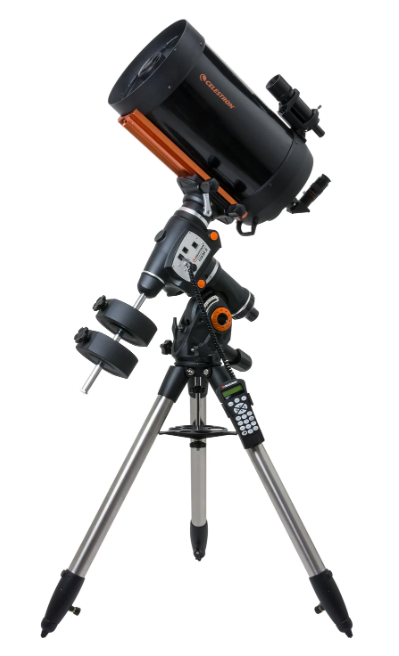

CGEM II 1100
22,000 ₪
צינור אופטי מסוג שמידט-קאסגריין בקוטר 11 אינץ׳
ציפויי StarBright XLT איכותיים של Celestron לשיפור העברת האור
יכולת נשיאת ציוד עד 40 פאונד
תושבת חיבור תואמת למסילות Vixen/CG-5 ו-Losmandy/CGE
רגלי פלדה בקוטר 2 אינץ׳ עם סימוני גובה ליישור מהיר וקל
חיווט פנימי מלא להפעלה נוחה ובטוחה גם מרחוק
יכולת מעקב רציפה מעבר לקו המרידיאן לצילום אסטרונומי חלק
שלט ידני עם חיבור USB לשליטה בטלסקופ דרך מחשב
| Optical Tube Info: | |
|---|---|
| Optical Design: | Schmidt-Cassegrain |
| Aperture: | 279.4mm (11") |
| Focal Length: | 2800mm (110") |
| Focal Ratio: | f/10 |
| Focal Length of Eyepiece 1: | 40mm (1.57") |
| Magnification of Eyepiece 1: | 70x |
| Finderscope: | 9x50 |
| Star Diagonal: | 1.25" Star Diagonal |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 660x |
| Lowest Useful Magnification: | 40x |
| Limiting Stellar Magnitude: | 14.7 |
| Resolution (Rayleigh): | 0.5 arc seconds |
| Resolution (Dawes): | 0.42 arc seconds |
| Light Gathering Power (Compared to human eye): | 1593x |
| Secondary Mirror Obstruction: | 95mm (3.75") |
| Secondary Mirror Obstruction by Diameter: | 34% |
| Secondary Mirror Obstruction by Area: | 12% |
| Optical Coatings: | StarBright XLT |
| Optical Tube Length: | 610mm (24") |
| Optical Tube Diameter: | 312.42mm (12.3") |
| Optical Tube Weight: | 27.5 lbs (12.4 kg) |
| Dovetail: | CGE Dovetail Bar |
| Mount Info: | |
| Mount Type: | Computerized Equatorial |
| Instrument load capacity: | 40 lbs (18 kg) |
| Height adjustment range (includes mount and tripod): | 1346mm - 1651mm (53" – 65") |
| Tripod Leg Diameter: | 50.8mm (2") Steel tripod with graduated markings on lower section |
| Latitude adjustment range: | 15° - 70° |
| Mount Head Weight: | 40 lbs (18.14 kg) |
| Accessory Tray: | Yes |
| Tripod Weight: | 20 lbs (9 kg) |
| Weight of Counterweights: | 2 x 17 lbs |
| Slew Speeds: | 9 slew speeds - max speed 4.5°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | EQ North and EQ South |
| GPS: | N/A |
| Dovetail Compatibility: | Dual saddle plates (CG-5 and CGE saddle) |
| Number of Auxiliary Ports: | 2 AUX Ports (1x Hand control Port and 1x AUX Port for optional accessories) |
| Autoguide Port: | Yes |
| USB Port: | Yes, input on Hand Control |
| Power Requirements: | 12V DC, 3.2 amps |
| Motor Drive: | DC servo motors |
| Alignment Procedures: | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction: | Yes |
| Computerized Hand Control: | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects Enhanced information on over 200 objects |
| Software: | Celestron Starry Night Special Edition Software and SkyPortal App |
| Total Kit Weight: | 105.5 lbs (47.8 kg) |
| Included Item: | CGEM II Equatorial Head Tripod Accessory Tray 2 x 17 lbs counterweights NexStar+ Hand Control DC Power Cable (item#18769) Hand Control Holster |
| Additional Information | |
| Solar Warning |
|
קוד מוצר: 12012
